Fenner FGC10 Full Gear Coupling | 88800 Nm Torque | Heavy-Duty Shaft Coupling for Rolling Mills & Cement Plants

27 people are viewing this right now

18 products sold in last 15 hours

Selling fast! Over 19 people have this in their carts

Fenner FGC 10 Full Gear Coupling offers high-capacity torque handling up to 88800 Nm, suited for large industrial machines in rolling mills, crushers, cement plants, and material handling drives.

Product Highlights

Estimated Delivery : Up to 4 business days

Guaranteed Safe And Secure Checkout

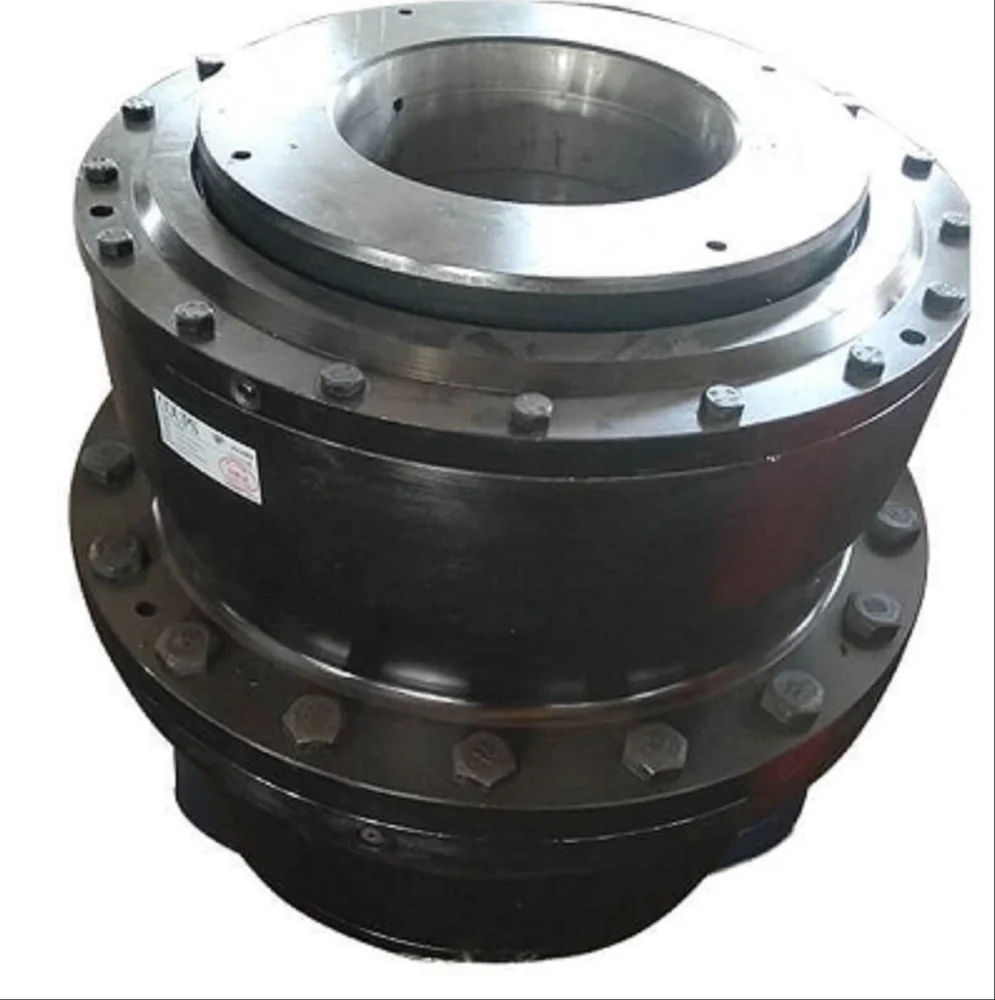

Fenner FGC 10 Full Gear Coupling is engineered for maximum torque performance, reliability, and long-term operation in rugged industrial environments. Designed with precision-machined carbon steel hubs and internally geared sleeves, it is ideal for transmitting 88800 Nm torque with minimum vibration and efficient power transfer.

Perfect for:
– Rolling mills in Raipur, Bhilai, Jamshedpur, Ludhiana
– Steel & cement plants in Ahmedabad, Pune, Hyderabad, Bokaro
– Mining and aggregate plants in Faridabad, Chennai, and Mandi Gobindgarh

This coupling handles:
– Parallel misalignment: 2.6 mm
– Angular misalignment: 1.5°
– Axial float: 3.0 mm

Built to last with:
– 12 M30×110 high-tensile bolts
– O-ring sealed sleeves
– Lithium or EP oil-based lubrication system

Fenner FGC 10 is trusted by OEMs and engineering firms across India. Available at epurza.com for PAN India supply.

Weight	310 kg
Torque	88800 Nm
Outer Diameter	490 mm
Length	370 mm
Length Through Bore	180 mm
Gear Hub Diameter	315 mm
Sleeve Hub Diameter	390 mm
Max Speed	2600 RPM
Parallel Misalignment	2.6 mm
Angular Misalignment	1.5°
Axial Float	3.0 mm
Hub Bore Range	100 mm – 230 mm
Weight (Full Flex)	310 kg
